Processor Intel® Centrion 2 Mobile Platform
New generation Intel Core 2 Duo, "Montevina" 64bit Processor, 1066MHz FSB
P8400/P8600/T9400/T9600

Intel® Centrino® 2 Processor Technology

Intel® Centrino® 2 processor technology

A new standard in mobile processing performance

The world is your playground—and with a notebook based on Intel® Centrino® 2 processor technology, you can experience high-definition digital entertainment, blistering performance, enabled longer-lasting battery life, and the new wireless standard for connectivity.‡

Intel® Core™ 2 Duo mobile processors

Intel® Core™2 DuoAt the dual-core heart of Intel® Centrino®2 processor technology, the Intel® Core™2 Duo processor family features a faster FSB (up to 1066 MHz), higher clock speeds, and enhanced microarchitecture technologies, helping to maximize Intel®Centrino®2 processor technology's dual-core performance and power savings.

  • • 6 MB of total L2 cache
  • • Up to 1066 MHz front side bus

Intel® PM45 Express Chipset

The Intel® PM45 Express Chipset delivers Microsoft Windows Vista* Premium support with the highest level of Microsoft Windows Aero* experience.1 It delivers outstanding system performance through high-bandwidth interfaces such as dual-channel DDR3 and DDR2 memory support, 1066 MHz system bus, PCI Express* x16 graphics port and PCI Express x1 I/O ports, Serial ATA, and Hi-Speed USB 2.0 connectivity. Use of the Intel PM45 Express Chipset includes support for Intel® Active Management Technology (Intel® AMT) 3.0, the next generation of remote client network management for business. Use of the Intel PM45 Express Chipset also includes support for dual graphics with ATI CrossfireX*, for extreme gaming.


 Features and benefits

Vista Premium support Enables Vista Premium logo with the highest level of Aero experience.
800 MHz Front Side Bus support Provides up to 20 percent faster data transfer rate compared to the previous generation bus speed.
Support for dual channel DDR2-800 MHz memory technology Support for increased performance memory technology.
Integrated high speed USB 2.0 Support for 10 USB 2.0 peripherals for maximum 40x faster data transfer and backward compatible to support USB 1.1 devices.
Intel® Matrix Storage Manager 7.0 Enables enhanced performance, power management and data protection for the storage subsystem.
Intel® Active Management Technology (Intel® AMT) 2.5 Support for new levels of manageability and support for PC clients in the business environment.

The Intel® Wireless WiFi Link 4965AGN product is an embedded 802.11a/b/g/Draft N¹ PCIe* Mini Card network adapter card that operates in both the 2.4GHz and 5.0GHz spectrum, delivering high throughput and a host of features that enhance today's mobile lifestyle.

Deploying WLAN technology in your home and business increases productivity, efficiency and flexibility by enabling faster decision making, reducing down-time, and enhancing employee satisfaction. For more information visit our WLAN ROI and WLAN Deployment web pages.
Video Intel X4500 256MB
Built-in CMOS 2.0 Mega Pixel Camera with Fix-Focus and Face Detect function
Chipset Intel Mobile GM45 Express, 1066 FSB
Memory Supports (2) 512MB/1G/2G DDR2 800 Memory Module, Max. 4G
Optical Drive DVD-RAM/-R/-RW Readable
Dual layer. Read/Write CD, DVD
Support Blueray Disc (TBA)
HDD Support (1) Serial ATA II 2.5" (9.5mm) 5400/7200rpm, max 500G

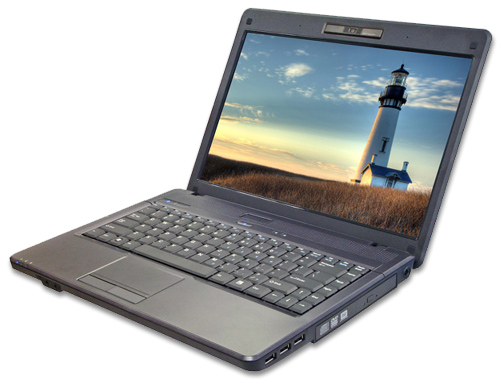

Display 14.1" WXGA Glare Wide Screen LCD (1280 x 800)
Audio Realtek ALC 268 2 Channel HD Audio
Built-in two 1.5W Speakers with chamber, stereo sound
Built-in Microphone for webcam
Microphone-in and headphone-out
Security Kensington Lock, HDD Password
PC Card (1) Express Card Slot
Communication Internal 56K Modem V.90/V.92
10/100/1000 Gigabit Lam
Built-in Intel PRO/Wireless 4965 a/g/n
Optional Bluetooth Module
Keyboard 86 keys, 101/102 key emulation
Standard pitch, 3.0mm Travel length
Windows key, application key
Pointing Device PS/2 Touch Pad with 2 buttons
I/O Ports 3x USB 2.0 ports
1x HDMI Port
VGA port, 15 pins
Microphone-in, headphones-out jacks
RJ-11 jack for Modem, RJ-45 jack for LAN
TV-Out, DC-jack, SD/Memory stick Memory Reader
Kensington Lock Slot
(No Parallel port, No Serial port)
System Status Indicators Caps, Num, Scroll LEDS
Power/Suspend status (Dual color)
Battery charging (Dual color)
IDE activity LED, - Module bay activity LED
One LED activity for blue-tooth or 802.11a+b (or b), - SD status
Controls Power button control by software
Lid switch control by software
One button to Enable/Disable wireless device
AC-DC Adapter A/C adapter Universal 65w
90-264v, 47-63 Hz
User Keys Volume Control, WWW, Email, Wow Video, Wow Audio, Smart Charging, Power USB
Battery 6 Cell Lithium-Ion battery pack, 4800mAh
Supports 1.5~2.5hrs operation time
Software Phoenix BIOS
512KB Flash Bios ROM
Suspend to RAM, suspend to Disk
Various hot-key for system control
Password protection for system
ACPI 11.0b compliant
Operating System Windows XP, Vista compatible
Options

Internal Bluetooth 2.1 Module

Dimension 13.1" x 10" x 1"
5.3lbs
